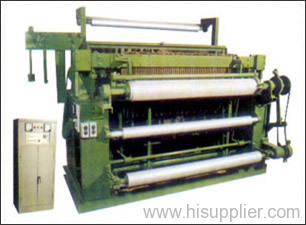

Welded Mesh Machine
Payment Terms: |
L/C,T/T |
Place of Origin: |
Hebei, China (Mainland) |
Product Detail
Means of Transport:
sea freight
Packing:
in waterproof paper in roll...
Application:
Others
Material:
Others
Production Capacity:
5000 square meters/day
Delivery Date:
in 10 days
Type:
Welded
Brand Name:
DNL
Our barbecue grill netting enjoys high quality and competitive price.
Size of mesh (mm) | 6.35-12.7 (1/4"-1/2") |
Width (mm) | 914.4-1219.2(12"-48") |
Diameter of wire (mm) | dia.0.45-dia.1.07 (BWG25-BWG19) |
Biggest rolled net size (m) | 120m (400') |
Welding speed (mesh/minute) | 75 (radia) |
Power | 380/220V 50-60HZ 50KWA x 4 |
Outside size measurement (mm) | 2350 x 1820 x 1700 |
Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity.Used for welding net of big width. Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2".
Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity.Used for welding net of big width. Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2". |
Size of mesh (mm) | 6.35-12.7 (1/4"-1/2") | Width (mm) | 1219.2-1828.8(48"-60") | Diameter of wire (mm) | dia.0.74-dia.1.07 (BWG22-BWG19) | Biggest rolled net size (m) | 120m (400') | Welding speed (mesh/minute) | 48 (radia) | Power | 380/220V 50-60HZ 50KWA x 6 | Outside size measurement (mm) | 3050 x 1900 x 1750 |
Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh 1/2" to 4". | Size of mesh (mm) | 12.7-101.6 (1/2"-4") | Width (mm) | 914.4-1219.2(12"-48") | Diameter of wire (mm) | dia.0.63-dia.2(BWG25-BWG19) | Biggest rolled net size (m) | 120m (400') | Welding speed (mesh/minute) | 65 (radia) | Power | 380/220V 50-60HZ 50KWA x 4 | Outside size measurement (mm) | 2600 x 1700 x 1350 |
|
Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh of big width and wire diameter. | Size of mesh (mm) | 25.4-152.4 (1"-6") | Width (mm) | 1219.2 1524 1828.8(48" 60" 72") | Diameter of wire (mm) | dia.1.07-dia.2 (BWG19-BWG14) | Biggest rolled net size (m) | 91.4m (300') | Welding speed (mesh/minute) | 45 (radia) | Power | 380/220V 50-60HZ 50KWA x 6 | Outside size measurement (mm) | 3350 x 1800 x 1400 |
|
|
